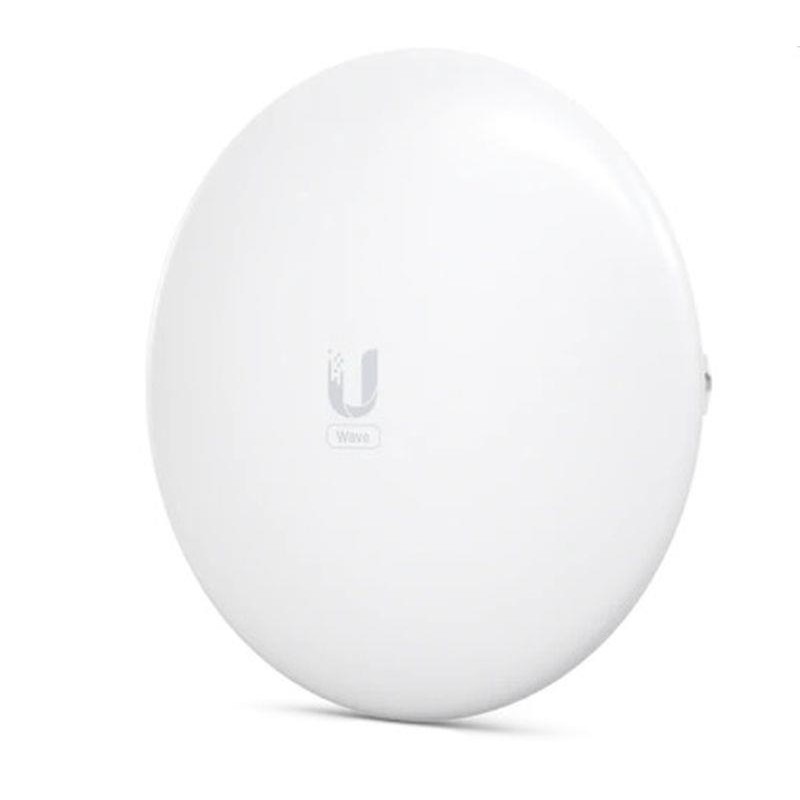

UBIQUITI PUNTO DE ACCESO WAVE NANO 60 GHZ

Ubiquiti WAVE-NANO 60 GHz tecnología Wave. PtP entre dos de ellos y CPE si se conecta a WAVE-AP o WAVE-AP-MICRO, rendimiento de 2 Gbps (1 Gbps dúplex). Enlaces de 5km. Radio de reserva de 5 GHz, Bl Ubiquiti WAVE-NANO 60 GHz tecnología Wave. PtP entre dos de ellos y CPE si se conecta a WAVE-AP o WAVE-AP-MICRO, rendimiento de 2 Gbps (1 Gbps dúplex). Enlaces de 5km. Radio de reserva de 5 GHz, Bl [WAVE-NANO] Añadir a la Cesta UBIQUITI WAVE-NANO 60 GHz tecnología Wave. PtP (a partir de firmware 3.2.0) y CPE en PtMP con AP Wave o AP Wave Micro. Rendimiento 2 Gbps (1 Gbps dúplex) en enlaces hasta 5km PtMP. Radio de reserva de 5 GHz, Bluetooth y GPS. Compatible con modo router Puede actuar como: -CPE/cliente en PtMP junto al WAVE-AP como AP emisor (hasta 5 Km.) o con WAVE-AP-MICRO (hasta 4 km.) -PtP entre dos de ellos (a partir de firmware 3.2.0) Radio de reserva de 5 GHz, Bluetooth y GPS. Compatible con modo router Mechanical Dimensiones Ø256.5 x 113.5 mm (Ø10.1 x 4.5) Peso Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) Material de carcasa Aluminum alloy, UV stabilized plastic Material de soporte Aluminum alloy, UV stabilized plastic Diametro de mástil 25 to 63.5 mm (1 to 2.5) on pipe outer diameter Carga al viento 127 N at 200 km/h (28.6 lbf at 125 mph) Weatherproofing IPX6 Hardware Processor Dual ARM® Cortex®-A53 cores at 1GHz Memory DDR3L 512MB Networking interface (1) GbE RJ45 port Max. power consumption 18W Power method 48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) 24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Power supply 48VDC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch Button Factory reset LEDs Power, Ethernet, GPS, link Operating temperature -40 to 60° C (-40 to 140° F) Operating humidity 5 to 95% noncondensing Certifications FCC, IC, CE Software OS airOS® Operating mode PtMP station Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test Network Bridge/Router mode Software management Bluetooth management for easy setup over UISP app WEB UI Minimum software requirements Any modern web browser/iOS or Android based smartphone System Total throughput 2 Gbps (1 Gbps duplex) Maximum range 5+ km Encryption WPA2-PSK (AES) RF Operating frequency* 57 to 71 GHz *Depends on regulatory region. GPS Yes Channel bandwidth 2160, 1080 MHz Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 41 dBi Azimuth and elevation beamwidth 3 dB: 1° 6 dB: 1.4° Back-Up RF Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. Channel bandwidth 20, 40, 80 MHz Modulation BPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6) Antenna gain 19 dBi Polarization Dual-linear Cross-pol isolation 20 dB Beamwidth Azimuth: 3 dB BW 14 to 17° Elevation: 3 dB BW 14 to 17° Azimuth and elevation beamwidth 3 dB: 14 to 17° LEDs Power Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing blue: Ethernet traffic detected GPS Blue: receiving at least (4) GPS satellite signal Links White: 5GHz link Blue: 60GHz link
