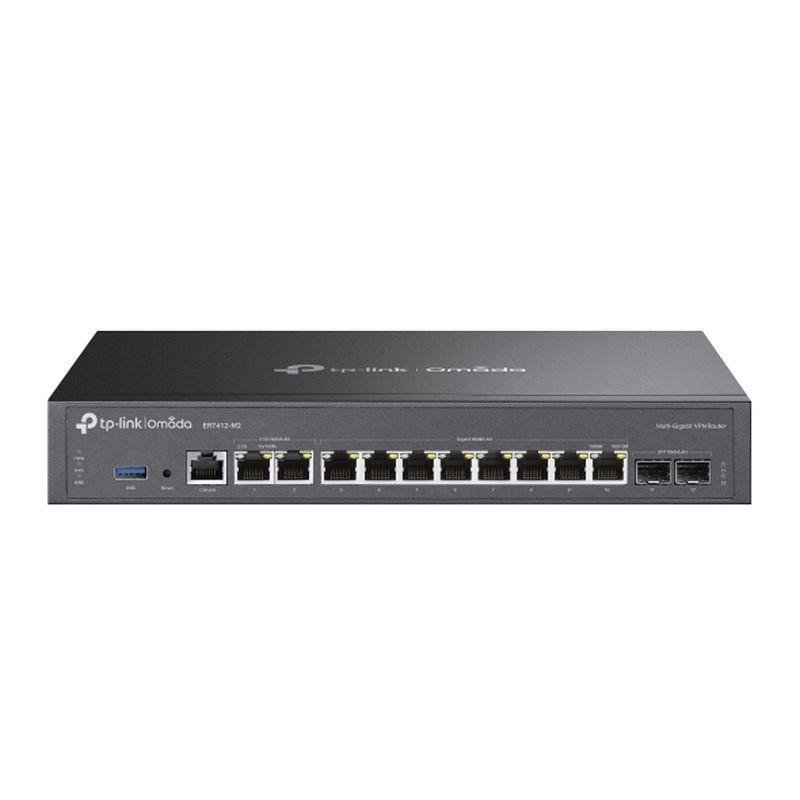

TP-LINK ROUTER ER7412-M2 OMADA MULTIGIGABIT

SEGURIDAD Control de Acceso Source/Destination IP-Based ACL Stateful ACL IPv4/IPv6 ACL Location Based ACL Filtrado WEB Group Filtering§ URL Filtering Web Security§ Inspección ARP Sending GARP Packets§ ARP Scanning§ IP-MAC Binding§ Defensa contra Ataques TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN CARACTERÍSTICAS DE HARDWARE Estándares y Protocolos IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP Interfaz 1× 2.5G RJ45 WAN/LAN Port 1× 2.5G RJ45 WAN/LAN Port 2× Gigabit SFP WAN/LAN Ports 8× Gigabit RJ45 WAN/LAN Ports 1× RJ45 Console Port 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) Medios de Red 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) 2500BASE-T: UTP category 5e, 6 cable (Max 100 m) Botones Reset Button Fuente de Alimentación 100240 VAC, 50/60 Hz Flash 128MB NAND DRAM 1 GB DDR4 Dimensiones 11.6×7.1×1.7 in (294×180×44 mm) Protección 4 kV surge protection Carcasa Steel Montaje Desktop Rackmountable Consumo de Potencia Máximo 18.5W (With USB 3.0 connected) RENDIMIENTO DPI Throughput 2.2Gbps GRE Unencrypted: 1153.0 Mbps Encrypted: 559.2 Mbps WireGuard VPN 771.6 Mbps Sesiones Concurrentes 1,000,000 Nuevas sesiones/Segundos 7,000 NAT (IP Estática) 2345.71 Mbps / 2351.22 Mbps NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps Rendimiento VPN IPsec ESP-SHA1-AES256: 1125.60 Mbps ESP-SHA256-AES256: 1133.1 Mbps ESP-SHA384-AES256: 1126.6 Mbps ESP-SHA512-AES256: 1132.8 Mbps OpenVPN UDP: 266.2 Mbps Rendimiento VPN L2TP Unencrypted: 2724.5 Mbps Encrypted: 1018.4Mbps Rendimiento VPN PPTP Unencrypted: 3035 Mbps Encrypted: 534.6 Mbps Rendimiento VPN SSL 263.1 Mbps 66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps 1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps FUNCIONES BÁSICAS Tipo de conexión WAN Static IP/Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP Mobile Broadband: 4G/3G modem for backup via USB port Clonado MAC Modify WAN/LAN MAC Address DHCP DHCP Server DHCPv6 PD Server (only in Standalone Mode) DHCP Options Customization DHCP Address Reservation Multi-IP Interfaces Multi-Net DHCP IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode FUNCIONES AVANZADAS Enrutamiento Avanzado Static Routing Policy Routing RIP (available in Standalone Mode) OSPF (available in Standalone Mode) Control de Ancho de Banda IP/Port-based Bandwidth Control Balanceo de Carga Intelligent Load Balance Application Optimized Routing Link Backup (Timing§, Failover) Online Detection NAT One-to-One NAT§ Multi-Net NAT Virtual Server Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP Límite de sesión IP-based Session Limit VPN GRE Only in Standalone Mode SSL VPN 80 Tunnels VPN IPsec 150 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover IKE v1/v2 MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) VPN PPTP PPTP VPN Server PPTP VPN Client (15)** 150 Tunnels PPTP with MPPE Encryption VPN L2TP L2TP VPN Server L2TP VPN Client (15)** 150 Tunnels L2TP over IPSec OpenVPN OpenVPN Server OpenVPN Client (11)** 121 OpenVPN Tunnels Certificate + Account Mode Full Mode WireGuard VPN 20 Tunnels AUTENTICACIÓN Autenticación web No Authentication Simple Password* Hotspot (Local User/Voucher*/SMS*/Radius*) External Radius Server External Portal Server* LDAP GESTIÓN Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Gestión Centralizada Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Servicio Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) Mantenimiento Web Management Interface Remote Management Export & Import Configuration SNMP v1/v2c/v3* Diagnostics (Ping & Traceroute)§ NTP Synchronize§ Port Mirroring CLI (only in Standalone Mode) Syslog Support Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller. Funciones de gestión Automatic Device Discovery* Batch Configuration* Batch Firmware Upgrading* Intelligent Network Monitoring* Abnormal Event Warnings* Unified Configuration* Reboot Schedule* Otros Certificaciones CE, FCC Contenido del Paquete ER7412-M2 Power Cord Quick Installation Guide Rackmount Kit RJ45 Console Cord Requisitos del sistema Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux Factores Ambientales Operating Temperature: 045 ? (32113 ?); Storage Temperature: -4070 ? (-40158 ?) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% non-condensing
