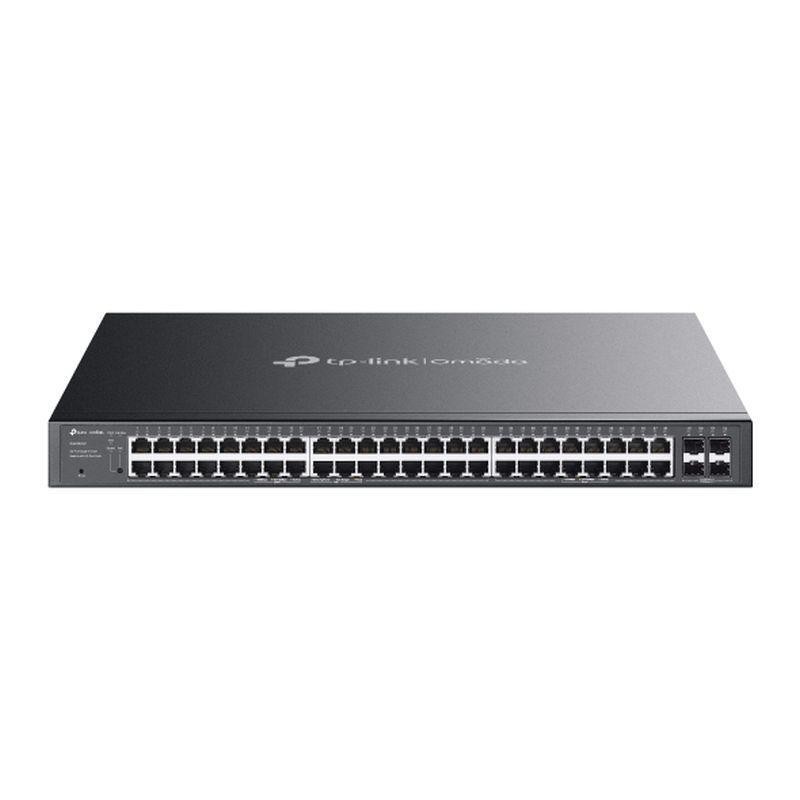

TP-LINK SWITCH OMADA SG2452LP DE 52 PUERTOS CON 32 PUERTOS POE+

Switch Omada Smart de 52 puertos Gigabit, con 32 puertos PoE+ 32× puertos PoE+ a Gigabit compatibles con 802.3af/at 16× puertos no PoE y 4× puertos Gigabit SFP Budget PoE total de 230W, hasta 30W de salida PoE por puerto* Gestión centralizada en la nube a través de la web o de la aplicación Omada Admite gestión local via web, CLI, SNMP, y RMON Enrutamiento estático ayuda en el enrutamiento interno del tráfico para una mayor eficiencia VLAN, ACL, QoS, y IGMP Snooping Diseño sin ventilador para un funcionamiento silencioso Carcasa metálica duradera y diseño para montaje en rack CARACTERÍSTICAS DE HARDWARE Interfaz 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4× Gigabit SFP Slots Cantidad de Ventiladores Fanless Bloqueo de Seguridad Físico v Fuente de Alimentación 100-240 V AC~50/60 Hz Puertos PoE (RJ45) Standard: 802.3at/af compliant PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port) PoE Power Budget: 230 W* Dimensiones 17.3×13.0×1.7 in (440×330×44 mm) Montaje Rack Mountable Consumo de Potencia Máximo 304.5W (110 V/60 Hz) (with 230 W PD connected) Disipación máxima de calor 1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected) RENDIMIENTO Capacidad de Conmutación 104 Gbps Tasa de Reenvío de Paquetes 77.37 Mpps Tabla de Direcciones MAC 16 K Memoria del Buffer de Paquete 12 Mbit Jumbo Frame 9 KB CARACTERÍSTICAS DE SOFTWARE Calidad de Servicio 802.1p CoS/DSCP priority 8 priority queues Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control: Port/Flow-based Rating Limit Smoother Performance Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control Características L2 y L2+ 16 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED Multicast L2 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile) Características Avanzadas Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule VLAN VLAN Group: Max. 4K VLAN Groups 802.1Q tag VLAN MAC VLAN: 12 Entries Protocol VLAN GVRP Voice VLAN Lista de Control de Acceso Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action - Mirroring - Redirect - Rate Limit - QoS Remark ACL Rules Binding - Port Binding - VLAN Binding Seguridad IP-MAC-Port Binding AAA 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Radius authentication and accountability support IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection IP Source Guard - 253 Entries - Source IP+Source MAC IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control IPv6 IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP MIBs MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) GESTIÓN Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Gestión Centralizada Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller. Funciones de gestión Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log Otros Certificaciones CE, FCC, RoHS Contenido del Paquete SG2452LP Power Cord Quick Installation Guide Rackmount Kit Rubber Feet Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Factores Ambientales Operating Temperature: 040 ? (32104 ?); Storage Temperature: -4070 ? (-40158 ?) Operating Humidity: 1090% RH non-condensing Storage Humidity: 590% RH non-condensing
